Creating visual diagrams is an essential part of communicating complex systems, relationships, and workflows. However, not all diagrams are created equal. Traditional tools like Microsoft Visio or Adobe Illustrator focus on visual design but often fall short in terms of scalability, automation, and integration. In contrast, semantic diagrams and Diagrams-as-Code offer a transformative approach to diagramming by encoding meaning and enabling automation.

This article explores the concept of semantic diagrams, their distinction from traditional tools, the benefits they offer, and how you can leverage them to create powerful, data-driven visualizations.

You can find a working version of the this article at: https://github.com/mattbriggs/semantic-diagrams

What Are Semantic Diagrams?

Semantic diagrams go beyond being mere visual representations. Semantic diagrams are structured, data-driven models that encode meaning using a defined schema. This approach prioritizes the relationships and types of components within a diagram, enabling tools and scripts to interpret the underlying data programmatically.

Key features of semantic diagrams include:

• Unique Identifiers: Every element (for example, nodes, edges, containers) is assigned a unique identifier for clarity and precision.
• Contextual Metadata: Each component carries metadata that defines its role and attributes within the system.
• Data Interoperability: Semantic diagrams can be exported, transformed, and integrated into other systems or workflows.

What Are Diagrams-as-Code?

Diagrams-as-Code involve creating diagrams using text-based representations, such as markup languages or coding syntax. Popular tools like Mermaid.js and Graphviz allow you to write diagram definitions in code, which can then be processed to generate visual outputs.

Benefits of diagrams-as-code:

1. Version Control: Track changes to diagrams alongside source code in Git repositories.
2. Automation: Generate diagrams dynamically based on structured data, such as YAML or JSON.
3. Scalability: Automate the creation and updates of diagrams for large or complex systems.

How Do These Differ from Traditional Diagram Tools?

Traditional tools like Microsoft Visio or Adobe Illustrator are visual-first. While they offer robust design capabilities, they often lack features critical for dynamic and scalable workflows.

Key limitations of traditional tools:

1. Lack of Semantic Context: Traditional diagrams focus on appearance without structured metadata. For example, a rectangle might represent a database in one diagram and a server in another, but these distinctions aren’t programmatically encoded.
2. Limited Scalability: Updating or creating large-scale diagrams manually is time-consuming and prone to error.
3. Poor Interoperability: Traditional diagrams are often stored in proprietary formats, making integration with other systems difficult.

Why Choose Semantic Diagrams and Diagrams-as-Code?

The advantages of semantic diagrams and Diagrams-as-Code go beyond convenience: they enable entirely new ways of working with visual information.

Why they are worth adopting:

1. Automation: Automatically generate diagrams from structured data, reducing manual effort and ensuring consistency.
2. Standardization: Define and enforce diagramming standards, ensuring clarity and uniformity across teams.
3. Validation: You can use mechanical standards to make sure your diagrams are well-formed, using XML Schema (XSD) or JSON Schema for YAML/JSON.
4. Integration: Use semantic diagrams as part of a broader knowledge management system, enabling advanced querying, transformation, and analysis.
5. Multi-target publishing: With the separation of data from presentation, you can transform the data into a diagram, and into interoperable formats, such as schemas found at Schema.org, or AI-friendly payloads that support robust indexing and managed chunking as you feed a LLM or RAG pipeline.

Use Case Example: Generating a Class Diagram from YAML

To illustrate the workflow of semantic diagrams, consider a scenario where you need to create a class diagram for a software system.

Steps:

1. Define the Data: Create a YAML file describing the entities and relationships in your system:

   classes:
     - name: User
       attributes:
         - id: integer
         - name: string
     - name: Order
       attributes:
         - id: integer
         - amount: float
       relationships:
         - type: "has_many"
           target: "User"

2. Process the Data: Use a script to validate the YAML file and convert it into a semantic diagram definition. In this case the following JSON Schema can be used to validate your class diagram:

   {
   "$schema": "https://json-schema.org/draft/2020-12/schema",
   "title": "Class Diagram Schema",
   "type": "object",
   "required": ["classes"],
   "properties": {
       "classes": {
       "type": "array",
       "items": {
           "type": "object",
           "required": ["name"],
           "properties": {
           "name": {
               "type": "string",
               "minLength": 1
           },
           "attributes": {
               "type": "array",
               "items": {
               "type": "object",
               "minProperties": 1,
               "maxProperties": 1,
               "additionalProperties": {
                   "type": "string",
                   "enum": ["string", "integer", "float", "boolean"]
               }
               }
           },
           "relationships": {
               "type": "array",
               "items": {
               "type": "object",
               "required": ["type", "target"],
               "properties": {
                   "type": {
                   "type": "string",
                   "enum": ["has_one", "has_many", "belongs_to", "many_to_many"]
                   },
                   "target": {
                   "type": "string",
                   "minLength": 1
                   }
               },
               "additionalProperties": false
               }
           }
           },
           "additionalProperties": false
       }
       }
   },
   "additionalProperties": false
   }


3. Generate the Diagram: Use a tool like Mermaid.js to render the diagram as HTML, PNG, or another format:

   Transform to diagram-as-code:

   classDiagram
       class User {
       integer id
       string name
       }
       class Order {
       integer id
       float amount
       }
       User "1" <-- "has_many" Order

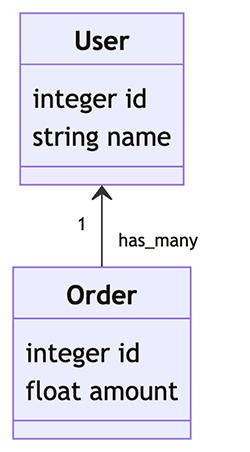

   Transform to diagram:



Transforming Your Diagramming Workflow

By adopting semantic diagrams and Diagrams-as-Code, you can shift from static, manual processes to dynamic, scalable workflows. These approaches make your diagrams:

• Dynamic: Easily updated and programmatically generated.
• Meaningful: Rich in metadata and ready for integration.
• Powerful: Tools for automation, validation, and transformation.
• AI-support: While LLMs can parse binary images, semantic diagrams provide robust controls for your diagram labels and support clean and auditable ingestion into a LLM or RAG pipeline.

Whether you’re a technical writer, developer, or systems architect, semantic diagrams and Diagrams-as-Code can revolutionize how you create, maintain, and share visual information. Start experimenting today and make your diagrams more than static visuals and turn them into integral parts of your data-driven workflows.
